14INCH Axial Flow Fan Cylinder Pipe Spray Booth Paint Fumes Blower Portable 5M Air Duct 110V

Introduction: <br>Axial fan can be used for ventilation in general factories, warehouses, offices, residential and other places. It can also be used for ventilation or heat dissipation in metallurgy, chemical industry, light industry, food, medical equipment, mechanical equipment and other places. It has the characteristics of low power consumption, fast heat dissipation and low noise. <br>Installation Instructions: <br>Check whether the fan is damaged or deformed before installation. If it is damaged or deformed, install it only after proper repair. <br>Pay attention to check whether each part is loose when installing, and the clearance between the blade and the wind duct should be uniform and should not collide. <br>The weight of the connected air pipe should not be borne by the fan duct, and it should be supported during installation. <br>Install a protective net at the air pipe end of the fan. <br>The fan base must be naturally connected to the foundation plane. Do not hit the base to force the connection to prevent the base deformation. During installation, correct the base, pad the four feet with rubber shock absorber, maintain the horizontal position, and then tighten the anchor bolts. <br>After the installation is completed, the experiment must be carried out first, and it can be used only after the operation is normal. <br> <br>Parameter: <br>Fan Diameter: 14INCH(36CM) <br>Voltage: 110V <br>Power: 750W <br>Frequency: 60HZ <br>Air Volume: 85M³/MIN <br>Full Pressure: 380PA <br>Speed: 2800R/MIN <br> <br>Items Included: 239863-EnzY <br>Axial Fan Cylinder Pipe Spray Booth Paint Fumes Blower 110V

• Pure cupper motor stands high temperature, saving energy and running stable.
• 85 m³/min Large Flow: This industrial fan is designed to maximize Air Flow: 85m³/h with low noise.
• Protective Fan Guard: Two high-density covers to ensure industrial mobile fan working continuously.

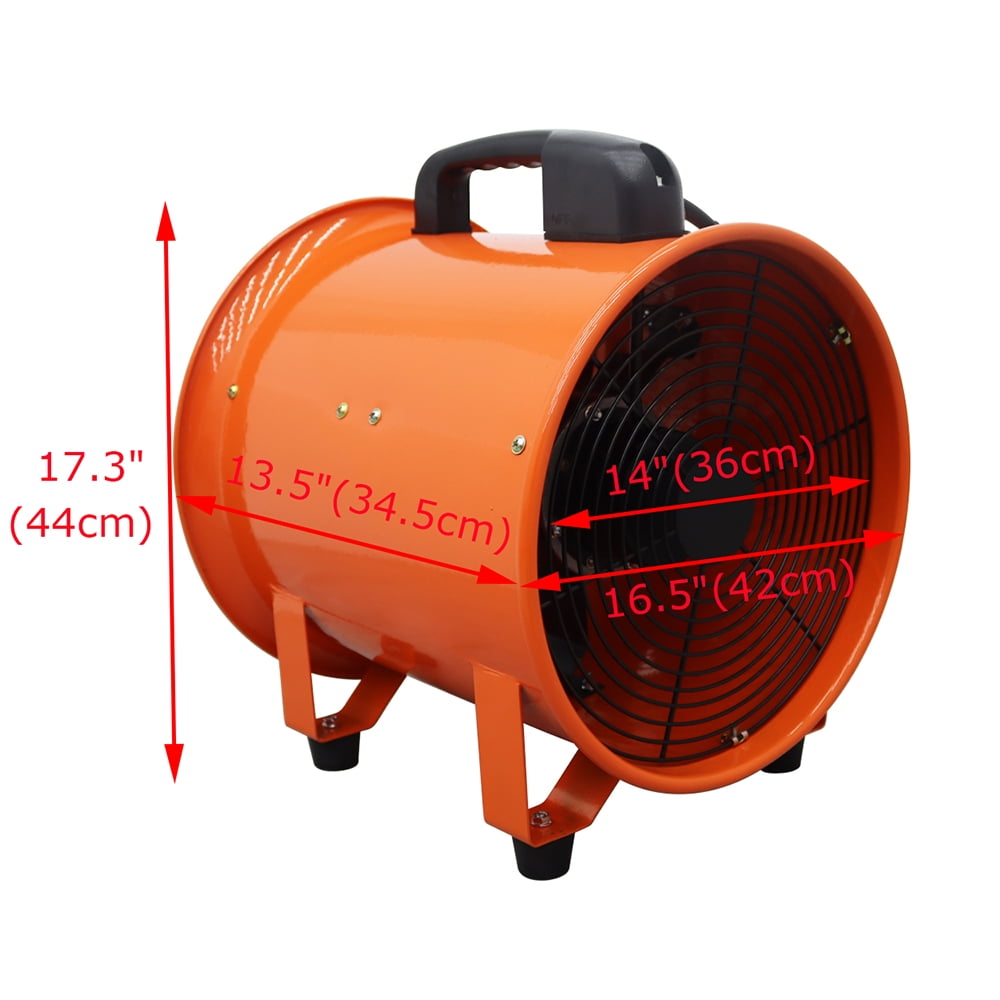

• The 14" extractor fan is designed with high quality metal, compact structure and beautiful appearance. Portable and practical with a handle. 4 rubber feet to fix it. The lightweight for a fast and easy installation.
• With 5 meters of air duct, more convenient to use. D-shaped rings are designed for hanging the duct smoothly. Thick ropes are able to be adjusted to fit the duct's mouth size and ensure a good sealing environment.
