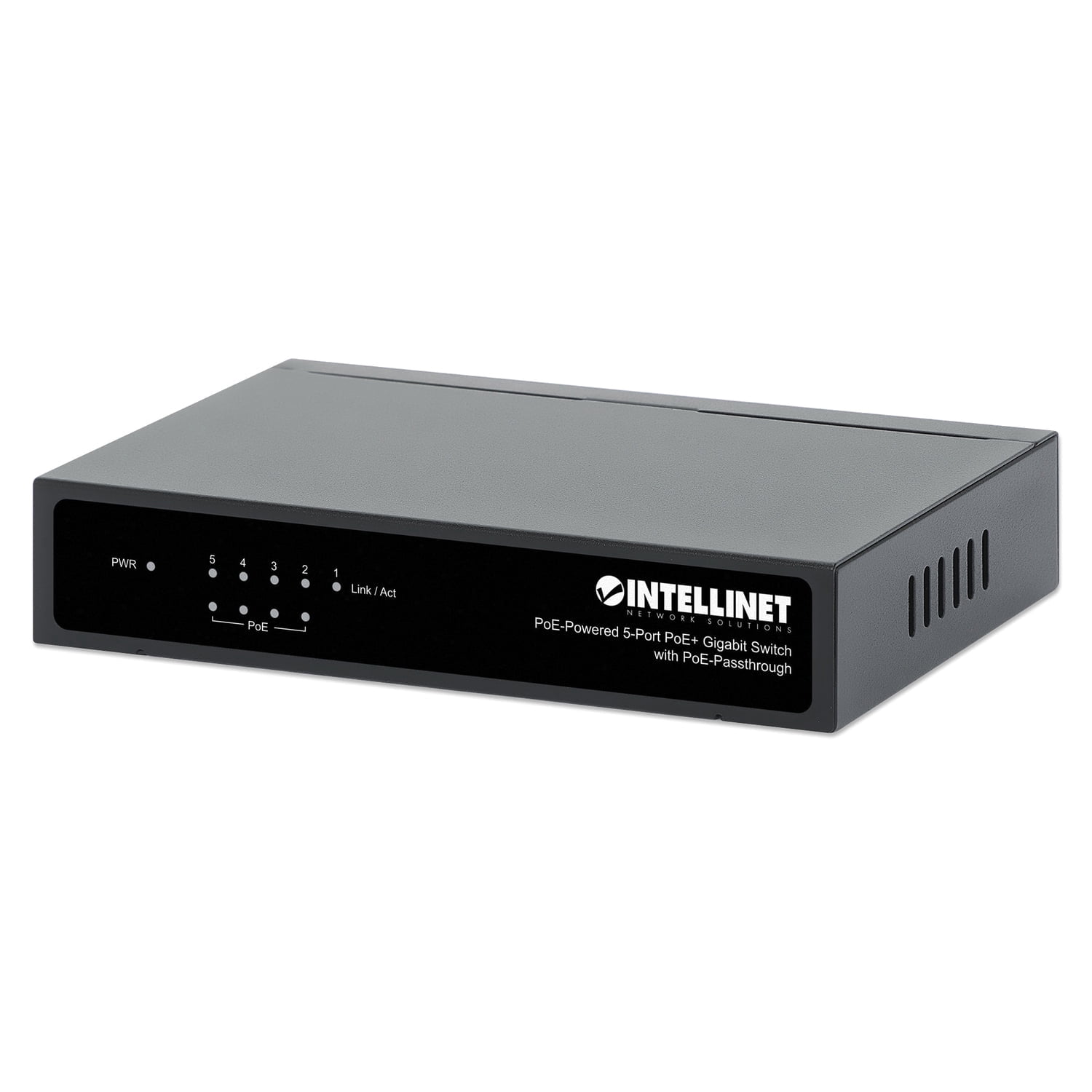

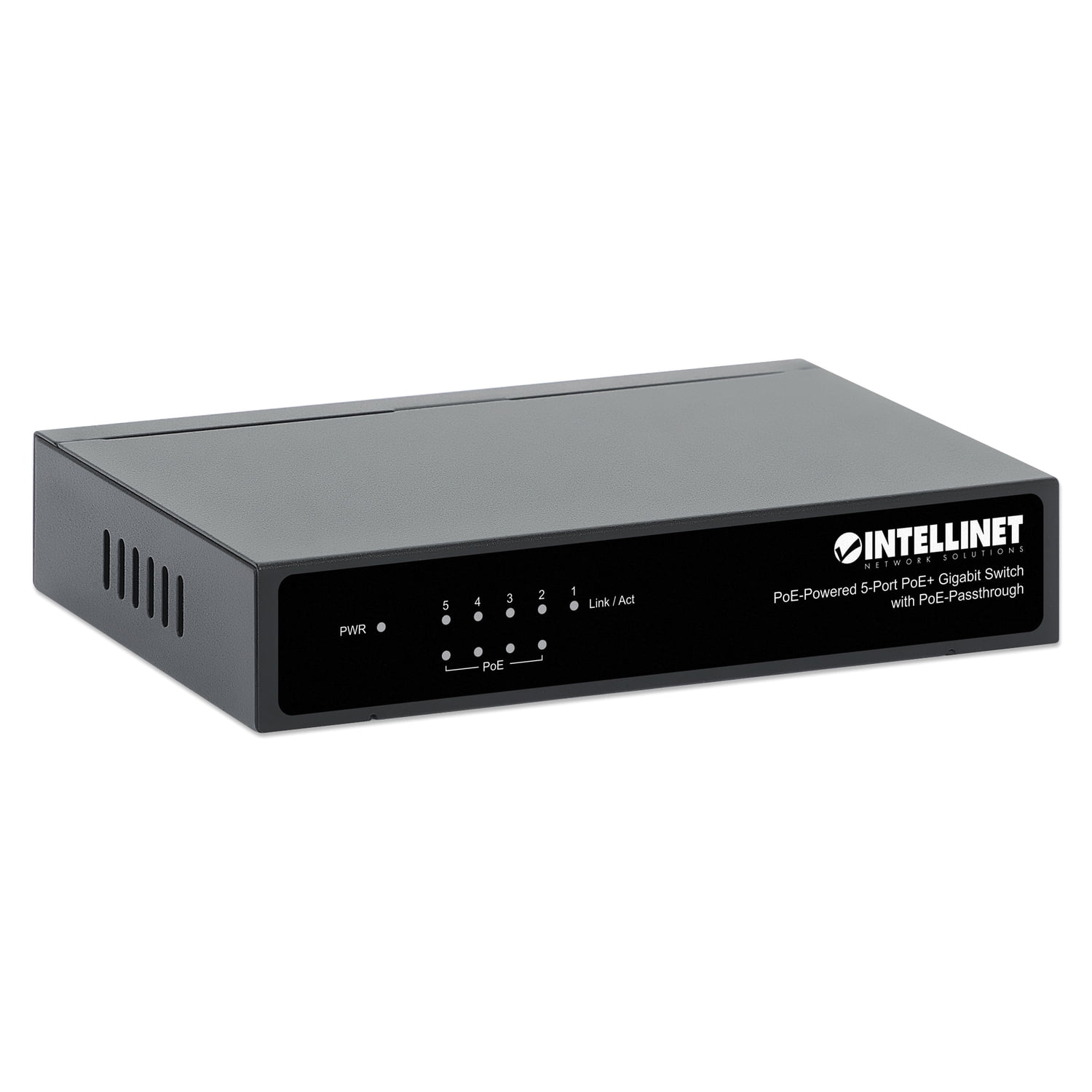

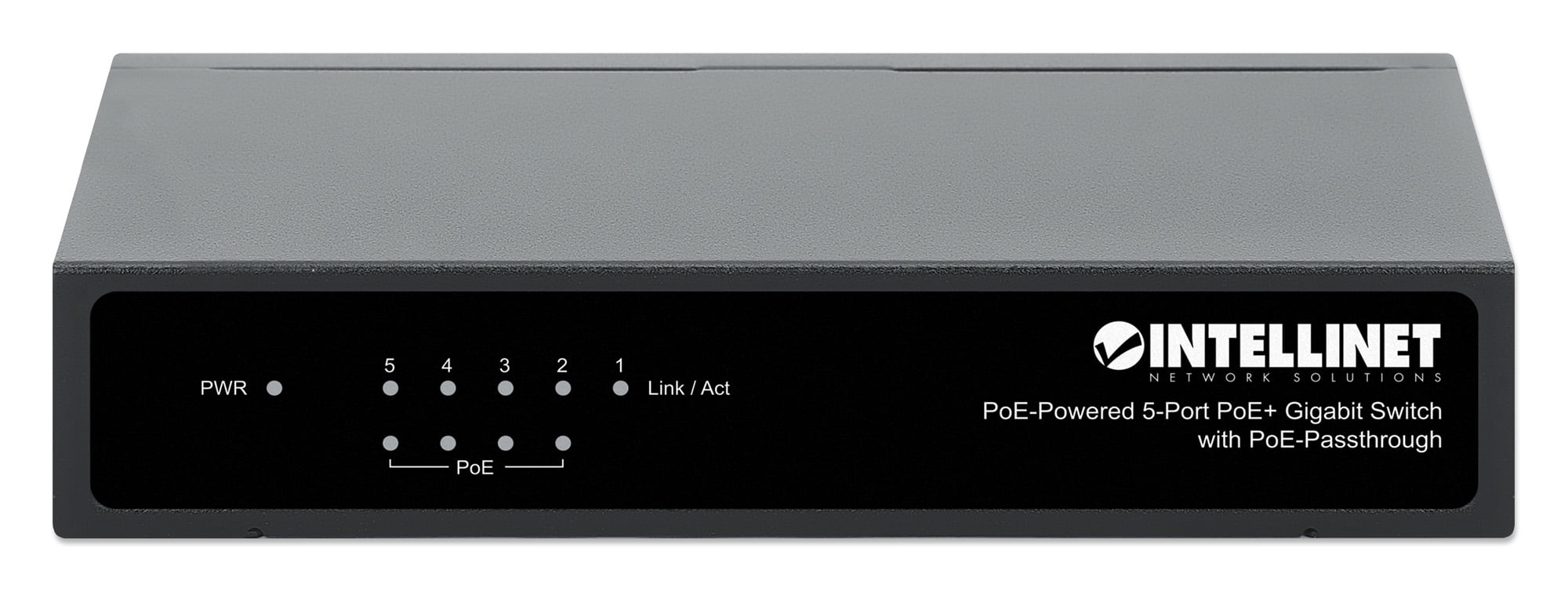

Intellinet PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough | 60W, Rear-facing Ports, Fanless, Desktop Format, Wall-mount Option | NDAA-compliant

<h2>Enhance Your Network with Unmatched Efficiency and Reach</h2> Discover the pinnacle of networking efficiency with our state-of-the-art PoE solution, designed to transform the way you power and connect your devices. This innovative device effortlessly receives power from either a PoE injector or a PoE switch, allowing you to energize up to four PoE network devices seamlessly. Notably, it doubles the connection distance between your PoE source and devices from 100 meters (328 feet) to an impressive 200 meters (656 feet), thus broadening your network's reach. <br><br> Whether powered via PoE or the included adapter, it offers a total power budget of 60 watts with AC power, and 26 watts when utilizing the PD input port. With a power output of up to 30 watts per port, it supports IEEE 802.3at and IEEE 802.3af-compliant devices, including wireless access points, VoIP phones, and IP cameras. The device features IEEE 802.3at af detection and provides short circuit, overload, and high-voltage protection, ensuring robust and reliable performance. <br><br> It is engineered with a 10 Gbps switch fabric and complies with the IEEE 802.3az Energy Efficient Ethernet specification, integrating Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on cable length. Its 10/100/1000 auto-sensing ports and Auto-MDIX support ensure optimal network speeds and seamless connectivity. <br><br> With a compact desktop format and rugged metal housing, the fanless design ensures silent operation, complemented by mounting holes for convenient wall installation. Fully NDAA-compliant, this device is backed by a three-year warranty, offering both peace of mind and exceptional value for any network setup. Experience a new standard in data and power delivery over existing network cables, significantly reducing installation costs and enhancing operational efficiency.

• Power Over Ethernet Flexibility: Easily power up to four network devices using a PoE injector or switch, with options for AC or PoE power sources.

• Extended Connection Range: Double your PoE connection distance to 200 meters, enhancing network versatility without additional wiring.

• Robust Power Management: Delivers up to 30 watts per port with a total power budget of 60 watts on AC and 26 watts via PoE, supporting a wide range of devices.

• High Compatibility: Seamlessly integrates with IEEE 802.3at and 802.3af-compliant devices like IP cameras, VoIP phones, and access points.

• Enhanced Network Efficiency: Features 10 Gbps switch fabric, green Ethernet technology, and auto-sensing ports for optimal speed and energy savings.
• Secure and Reliable: Offers IEEE 802.3at/af detection, high-voltage protection, and supports up to 2048 MAC address entries for secure connections.

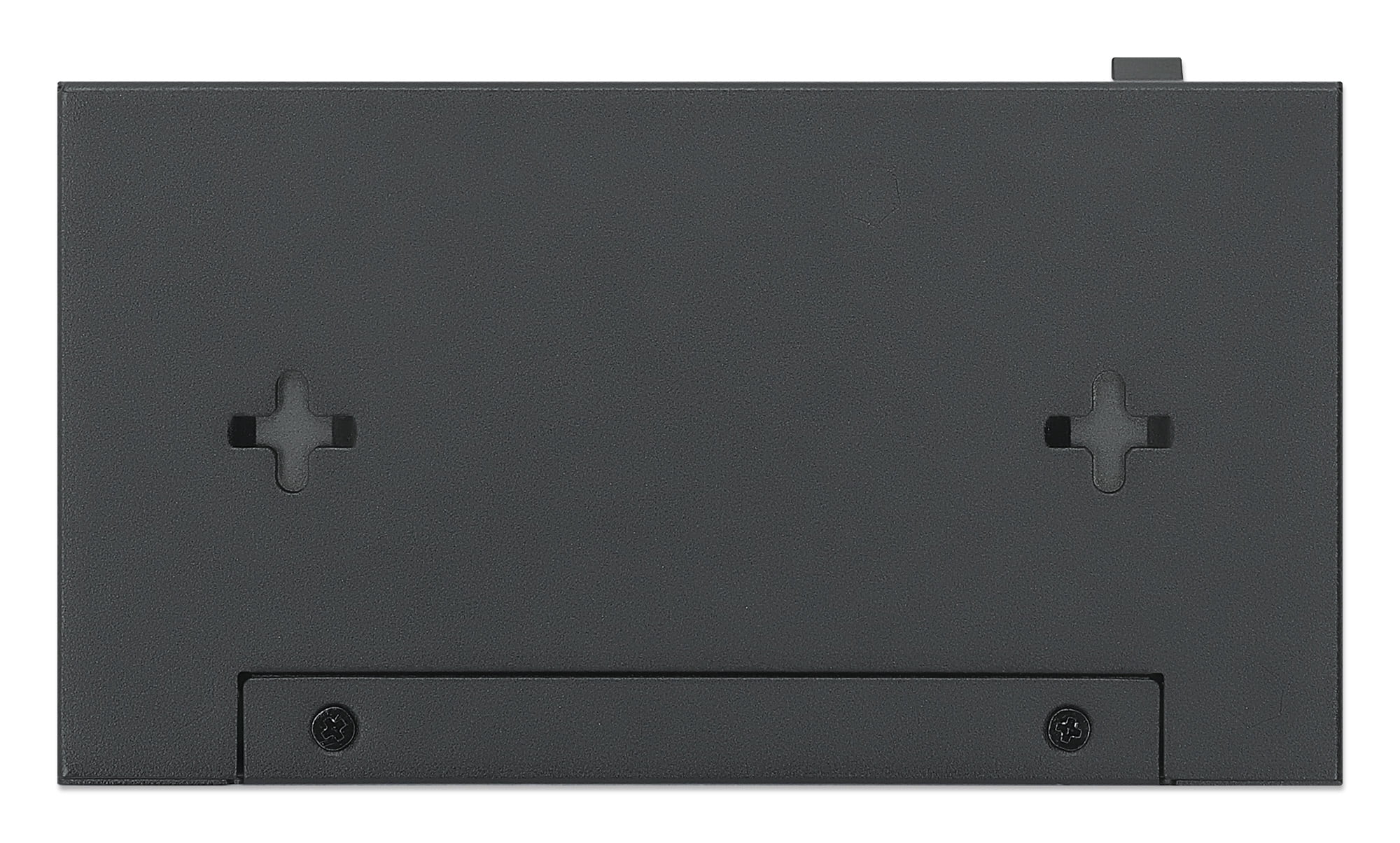

• Durable and Convenient Design: With a fanless, compact metal housing, this device ensures silent operation and can be easily wall-mounted, backed by a three-year warranty.
• Standards
  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3af (Power over Ethernet 802.3at Type 1)
  • IEEE 802.3at (Power over Ethernet 802.3at Type 2)
  • IEEE 802.3az (Energy Efficient Ethernet EEE)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3x (flow control, for full duplex mode)
• PoE Pinout
  • IEEE 802.3af Standard Mode A
  - Pin 1: DC (+)
  - Pin 2: DC (+)
  - Pin 3: DC (-)
  - Pin 6: DC (-)
• Power

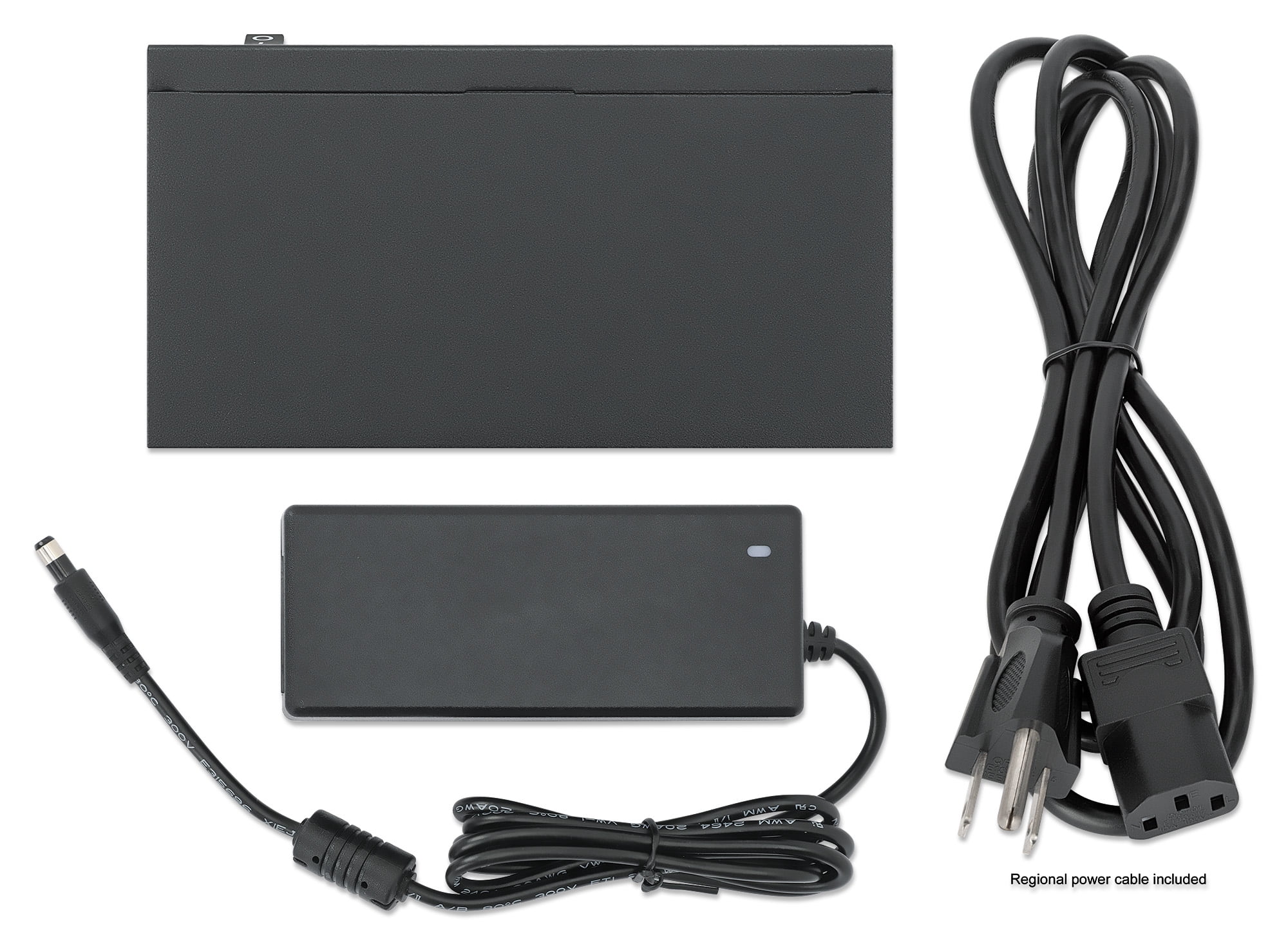

  • Included power adapter:
  - Input: 100.0 - 240.0 VAC, 50 - 60 Hz, 1.5 A
  - Output: DC, 51.0 V, 1.25 A
  - PoE Budget: 60.0 watts (maximum)
  - Power consumption: 63.75 watts (maximum)
  • Via PD port (port 1)
  - Input: IEEE802.3af/at compliant
  - PoE Budget: 26.0 watts (maximum)
  - Power consumption: 30.0 watts (maximum)
• Physical
  • Metal housing
  • Dimensions (L x W x H): 78 x 140 x 28 mm (3.07 x 5.51 x 1.1 in.)
  • Net weight: 270 g (0.6 lbs.)
  • Gross weight: 900 g (1.98 lbs.)
  • Operating temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: 0 - 70°C (32 - 158°F)
  • Operating humidity: 10 - 90% RH, non-condensing
